UK Din Rail Terminal Blocks

Home > Terminal Blocks > UK Din Rail Terminal Blocks

UK1.5N

Pitch : /, M2 , 600V , 10A

Material
Screw	M2.0，Steel，Ni Plated
Terminal	Brass，Ni Plated
Plastic	PA66，UL94V-0

Electrical
Standard	UL	IEC
Rated voltage	600V	500V
Rated current	10A	17.5A
Wire range	26-16AWG	0.2-1.5mm2
Internal Cylindrical Gage	A1
Stripping Length	7mm
Rated Surge Voltage	6KV

Mechanical
Temperature range	-40°C~+105°C
Tightening Torque	0.2N.m

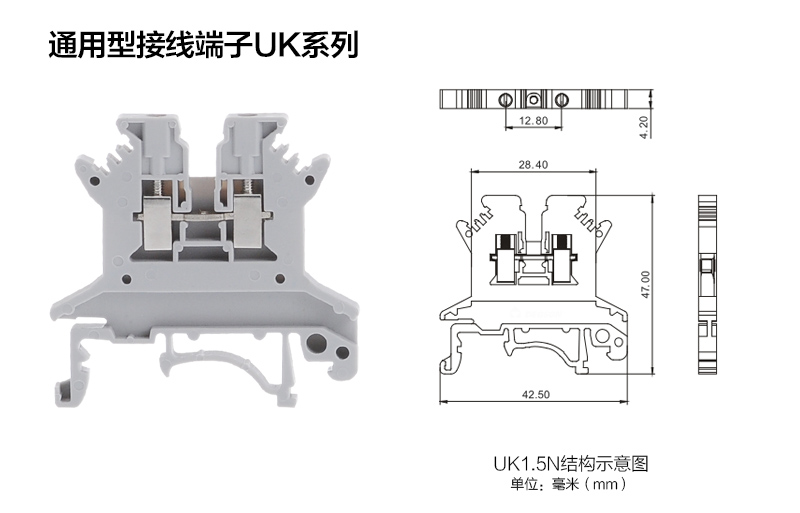

Size
T/W/End plate	4.2/42.5/1.5mm
Height (NS35:7.5/NS35:15/N32)	42/49.5/47mm
