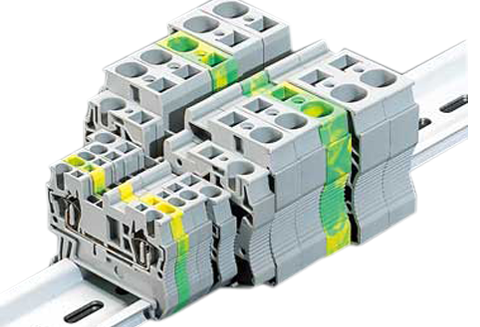

The spring clamp is made with stainless steel material and the copper current bar comes with a surface indentation which offers a consistent and stable wiring connection even in vibrating applications. The spring clamp connection also offers a shorter wire installation time and is easy to maintain.
WS Din Rail Terminal Blocks
Model：WS-1.5
Voltage rating：600V
Current rating：10A
Wire range：0.2-1.5mm²
WS Din Rail Terminal Blocks
Model：WS-2.5
Voltage rating：600V
Current rating：15A
Wire range：0.2-2.5mm²
WS Din Rail Terminal Blocks
Model：WS-4
Voltage rating：600V
Current rating：15A
Wire range：0.2-4.0mm²
WS Din Rail Terminal Blocks
Model：WS-6
Voltage rating：600V
Current rating：30A
Wire range：0.2-6.0mm²
WS Din Rail Terminal Blocks
Model：WS-10
Voltage rating：600V
Current rating：50A
Wire range：0.2-10mm²
WS Din Rail Terminal Blocks
Model：WS-1.5-PE
Voltage rating：600V
Current rating：10A
Wire range：0.2-1.5mm²
WS Din Rail Terminal Blocks
Model：WS-2.5-PE
Voltage rating：600V
Current rating：15A
Wire range：0.2-2.5mm²
WS Din Rail Terminal Blocks
Model：WS-4-PE
Voltage rating：600V
Current rating：20A
Wire range：0.2-4.0mm²
WS Din Rail Terminal Blocks
Model：WS-6-PE
Voltage rating：600V
Current rating：30A
Wire range：0.2-6.0mm²
WS Din Rail Terminal Blocks
Model：WS-10-PE
Voltage rating：600V
Current rating：50A
Wire range：0.2-10mm²
WS Din Rail Terminal Blocks
Model：WS-1.5-TW
Voltage rating：600V
Current rating：10A
Wire range：0.2-1.5mm²
WS Din Rail Terminal Blocks
Model：WS-2.5-TW
Voltage rating：600V
Current rating：15A
Wire range：0.2-2.5mm²
WS Din Rail Terminal Blocks
Model：WS-4-TW
Voltage rating：600V
Current rating：20A
Wire range：0.2-4.0mm²
WS Din Rail Terminal Blocks
Model：WS-6-TW
Voltage rating：600V
Current rating：30A
Wire range：0.2-6.0mm²
WS Din Rail Terminal Blocks
Model：WS-10-TW
Voltage rating：600V
Current rating：50A
Wire range：0.2-10mm²
