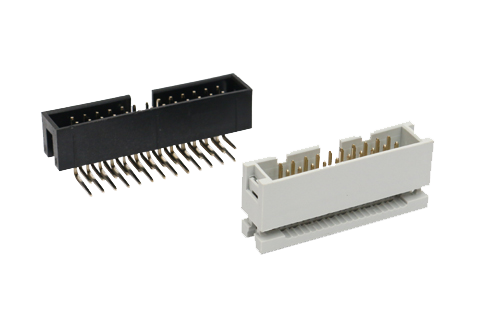

Box header is available with different pitch from 1.27mm, 2.0mm and 2.54mm. The main mounting type includes straight type, right angle type and smt type. Customers can choose the proper type according to own requirement. This series applies to Industrial control, board to board, computer and so on. Products are designed in accordance with CE, ROHS, REACH standard
1.27mm Box Header V/T
Type
Model：HY1015-01
Voltage rating：/
Current rating：1.0A
Positions：6 - 40
1.27mm Box Header SMT
Type
Model：HY1015-02
Voltage rating：/
Current rating：1.0A
Positions：6 - 40
1.27*2.54mm Box Header
V/T Type
Model：HY1015-03
Voltage rating：/
Current rating：1.0A
Positions：10 - 100
1.27*2.54mm Box Header
SMT Type
Model：HY1015-04
Voltage rating：/
Current rating：1.0A
Positions：10 - 100
2.0mm Box Header V/T
Type
Model：HY1016-01
Voltage rating：/
Current rating：1.5A
Positions：6 - 64
2.0mm Box Header R/A
Type
Model：HY1016-02
Voltage rating：/
Current rating：1.5A
Positions：6 - 64
2.0mm Box Header SMT
Type
Model：HY1016-03
Voltage rating：/
Current rating：1.5A
Positions：6 - 64
2.54mm Box Header V/T
Type
Model：HY1017-01
Voltage rating：/
Current rating：3.0A
Positions：6 - 64
2.54mm Box Header R/A
Type
Model：HY1017-02
Voltage rating：/
Current rating：3.0A
Positions：6 - 64
2.54mm Box Header SMT
Type
Model：HY1017-03
Voltage rating：/
Current rating：3.0A
Positions：6 - 64
2.54mm Box Header IDC
Type Without Ears
Model：HY1017-04
Voltage rating：/
Current rating：3.0A
Positions：10 - 64
2.54mm Box Header IDC
Type With Mounting Ears
Model：HY1017-05
Voltage rating：/
Current rating：3.0A
Positions：10 - 64
2.54mm Box Header V/T
H=9.0mm Add Housing
Model：HY1017-06
Voltage rating：/
Current rating：3.0A
Positions：10 - 64
