PCB terminal blocks use an error-proofing design and an assortment of techniques to provide electricity or signal transmissions for a variety of industrial applications. They also comply with international certifications.

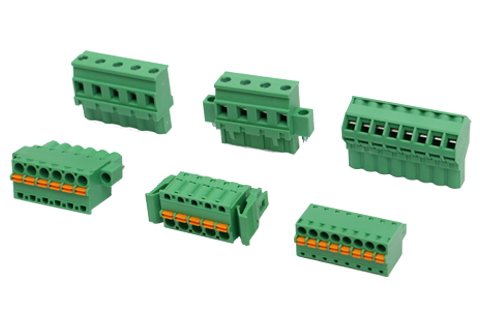

Connector-plugs use an assortment of connecting technologies such as screw connections, spring clamp connections and a push-in design structure. The plug components are available in a variety of wire entry angles and mounting structures.
MORE>>
Connector sockets are often soldered or mounted onto PCB terminal blocks. Sockets are available in a range of designs including different angles, single/multi-level, normal PA and high temperature material to meet different application and assembly requirements.
MORE>>
This series is economical PCB terminal blocks, Poles:02P-24P, Pitch:3.5mm-12.5mm, Wiring Angles :180°, 90°, 45°, applies to security systems, lighting systems and general electronic products, and the product design is in accordance with some international standards, such as IEC60998, UL1059, CSA C22.2 No.158 etc.……
MORE>>
This series is spring clamp PCB terminal blocks with 2 connection methods: cage clamp connection and butterfly clamp connection. Patek Philippe Replica They also have anti-vibration feature. Poles:01P-99P, Pitch:2.5mm-20.0mm, Cross-sections:0.08mm2-16mm2, Wiring Angles: horizontal (180°), vertical (90°), and bevel (45°), match the 1/2/3/4-layered designs. This series applies to communication systems, lighting systems, security systems, wiring layout for buildings, etc. Also
MORE>>
These products are designed for special connection purposes. The terminal blocks can be mounted on a panel or on a DIN rail while connected to a plug component. 5.00mm and 5.08mm pitches are available.
MORE>>
PCB terminal blocks come in a wide range of products that are quick to install, easy to maintain and compact in size. They use a variety of connecting technologies replica omega and come in different angles, single/multi-level designs and high heat resistance material for reflow applications.
