High quality copper material is used for a safer, more effective connection through panels. Available pitch sizes range from 8.5mm-27mm with a max. amp rating of 175A and a max. voltage rating of 600V. Top protection covers and washers are optional.

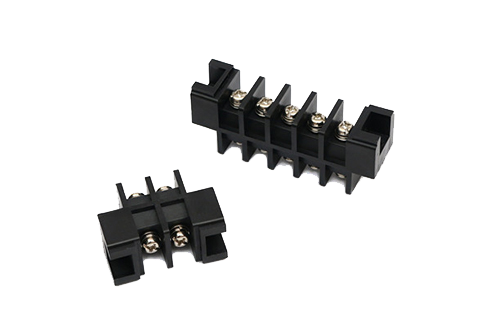

High Current Terminal Blocks-Pitch 8.5mm
Model：EX178-8.5
Voltage rating：300V
Current rating：20A
Wire range：2.5mm²
High Current Terminal Blocks-Pitch 8.5mm
Model：EX178S-8.5
Voltage rating：300V
Current rating：20A
Wire range：2.5mm²
High Current Terminal Blocks-Pitch 8.5mm
Model：EX178SS-8.5
Voltage rating：300V
Current rating：20A
Wire range：2.5mm²
High Current Terminal Blocks-Pitch 11.0mm
Model：EX278-11.0
Voltage rating：300V
Current rating：30A
Wire range：4.0mm²
High Current Terminal Blocks-Pitch 11.0mm
Model：EX278S-11.0
Voltage rating：300V
Current rating：30A
Wire range：4.0mm²
High Current Terminal Blocks-Pitch 11.0mm
Model：EX278SS-11.0
Voltage rating：300V
Current rating：30A
Wire range：4.0mm²
High Current Terminal Blocks-Pitch 13.0mm
Model：EX378-13.0
Voltage rating：600V
Current rating：50A
Wire range：10mm²
High Current Terminal Blocks-Pitch 13.0mm
Model：EX378S-13.0
Voltage rating：600V
Current rating：50A
Wire range：10mm²
High Current Terminal Blocks-Pitch 13.0mm
Model：EX378SS-13.0
Voltage rating：600V
Current rating：50A
Wire range：10mm²
High Current Terminal Blocks-Pitch 16.0mm
Model：EX478-16.0
Voltage rating：600V
Current rating：65A
Wire range：16mm²
High Current Terminal Blocks-Pitch 16.0mm
Model：EX478S-13.0
Voltage rating：600V
Current rating：65A
Wire range：16mm²
High Current Terminal Blocks-Pitch 16.0mm
Model：EX478SS-16.0
Voltage rating：600V
Current rating：65A
Wire range：16mm²
High Current Terminal Blocks-Pitch 21.0mm
Model：EX578-21.0
Voltage rating：600V
Current rating：115A
Wire range：35mm²
High Current Terminal Blocks-Pitch 21.0mm
Model：EX578S-21.0
Voltage rating：600V
Current rating：115A
Wire range：35mm²
High Current Terminal Blocks-Pitch 21.0mm
Model：EX578SS-21.0
Voltage rating：600V
Current rating：115A
Wire range：35mm²
