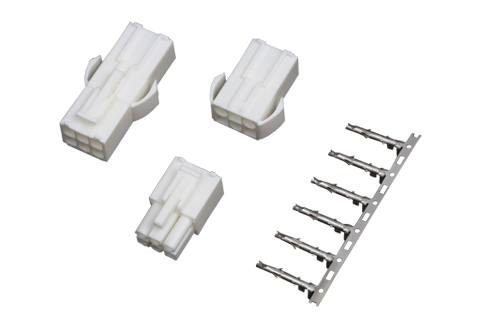

PCB connector is made from PA66, with excellent pliability and fire resistance. They are available with different pitch: 2.0mm, 2.5mm, 3.96mm, 5.08mm, 4.2mm, 1.25mm, Customers can choose SCNW, SANW, PH, SAN, SCN, XH type according to their requirements. Products are designed in accordance with CE, ROHS, REACH standard
1.25mm Wafer R/A SMT Type
Model：HY1035-01
Voltage rating：/
Current rating：1.0A
Positions：2 - 16
1.25mm Wafer V/T SMT Type
Model：HY1035-02
Voltage rating：/
Current rating：1.0A
Positions：2 - 16
2.0mm PCB Connector
PH Type
Model：HY1036-01
Voltage rating：250V
Current rating：1.0A
Positions：2 - 15
2.0mm PCB Connector
SAN Type
Model：HY1036-02
Voltage rating：250V
Current rating：1.0A
Positions：2 - 15
2.0mm PCB Connector
SANW Type
Model：HY1036-03
Voltage rating：250V
Current rating：1.0A
Positions：2 - 15
2.0mm PCB Connector
TJC8 Type
Model：HY1036-04
Voltage rating：250V
Current rating：1.0A
Positions：1 - 40
2.0mm PCB Connector
PHD Type
Model：HY1036-05
Voltage rating：250V
Current rating：3.0A
Positions：2 - 20
2.5mm PCB Connector
SCN Type
Model：HY1037-01
Voltage rating：250V
Current rating：1.0A
Positions：2 - 16
2.5mm PCB Connector
SM Type
Model：HY1037-02
Voltage rating：250V
Current rating：3.0A
Positions：2 - 12
2.5mm PCB Connector
SCNW Type
Model：HY1037-03
Voltage rating：250V
Current rating：2.0A
Positions：2 - 16
2.5mm PCB Connector
XH Type
Model：HY1037-04
Voltage rating：250V
Current rating：1.0A
Positions：2 - 20
2.5mm PCB Connector
5264 Type
Model：HY1037-05
Voltage rating：250V
Current rating：1.0A
Positions：2 - 20
2.5mm PCB Connector
Wafer Type
Model：HY1037-06
Voltage rating：250V
Current rating：1.0A
Positions：2 - 15
2.54mm PCB Connector
2510 Type
Model：HY1038-01
Voltage rating：250V
Current rating：3.0A
Positions：2 - 20
2.54mm PCB Connector
TJC8 Type
Model：HY1038-02
Voltage rating：250V
Current rating：3.0A
Positions：1 - 15
