FD connector is dip type, during the production, they are as female part, shrouded header and box header as male part. Sometimes, they are used with flat cable. Available with different pitch from 1.27mm, 2.0mm, 2.54mm, they are used in connecting of board to board. Products are designed in accordance with CE, ROHS, REACH standard

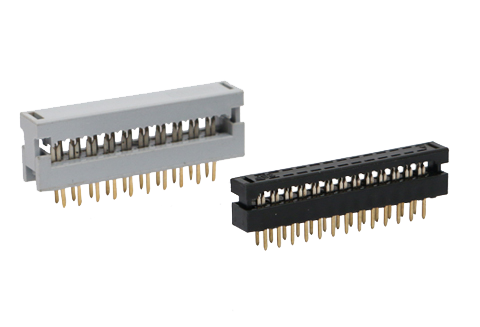

1.27mm DIP Plug Connector
Model：HY1088-01
Voltage rating：/
Current rating：1.0A
Positions：10-80
1.27*2.54mm DIP Plug
Connector
Model：HY1088-02
Voltage rating：/
Current rating：1.0A
Positions：40/60/68/80/100
2.0mm DIP Plug
Connector
Model：HY1088-03
Voltage rating：/
Current rating：1.0A
Positions：10-64
2.54mm DIP Plug
Connector
Model：HY1088-04
Voltage rating：/
Current rating：3.0A
Positions：6-64
2.54*7.62mm DIP Plug
Connector
Model：HY1088-05
Voltage rating：/
Current rating：3.0A
Positions：6-64
2.54mm DIP Plug
Connector
Model：HY1088-06
Voltage rating：/
Current rating：3.0A
Positions：6-64
