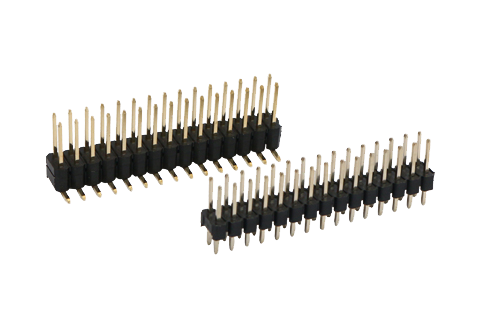

Pin header is used for the electric circuit that can be connected in blocked and isolated part. It is as a bridge which can transfer current and signal. It is used with female header so that board to board can be connected. They are available with different pitch, such as 1.0mm, 1.27mm, 2.0mm and 2.54mm. The main mounting type includes straight type, right angle type and smt type. Products are designed in accordance with CE, ROHS, REACH standard.
0.8mm Pin Header Dual
Row SMT Type
Model：HY1001-01
Voltage rating：/
Current rating：0.5A
Positions：2*2 - 2*40
0.8mm Pin Header Dual
Row Double Plastic SMT
Model：HY1001-02
Voltage rating：/
Current rating：1.0A
Positions：1- 40
0.8mm Pin Header Dual
R/A SMT Type
Model：HY1001-03
Voltage rating：/
Current rating：1.0A
Positions：2*2 - 2*40
1.0mm Pin Header Single
Row V/T Type
Model：HY1002-01
Voltage rating：/
Current rating：0.5A
Positions：1 - 40
1.0mm Pin Header Single
Row Stack V/T Type
Model：HY1002-02
Voltage rating：/
Current rating：1.0A
Positions：1 - 40
1.0mm Pin Header Single
Row R/A Type
Model：HY1002-03
Voltage rating：/
Current rating：1.0A
Positions：1 - 40
1.0mm Pin Header Single
Row SMT Type
Model：HY1002-04
Voltage rating：/
Current rating：1.0A
Positions：1*3 - 1*50
1.0mm Pin Header Single
Row SMT Stack Type
Model：HY1002-05
Voltage rating：/
Current rating：1.0A
Positions：1*3 - 1*50
1.0mm Pin Header Dual
Row V/T Type
Model：HY1002-06
Voltage rating：/
Current rating：1.0A
Positions：1 - 40
1.0mm Pin Header Dual
Row Stack V/T Type
Model：HY1002-07
Voltage rating：/
Current rating：1.0A
Positions：1 - 40
1.0mm Pin Header Dual
Row R/A Type
Model：HY1002-08
Voltage rating：/
Current rating：1.0A
Positions：1 - 40
1.0mm Pin Header Dual
Row Stack SMT Type
Model：HY1002-09
Voltage rating：/
Current rating：1.0A
Positions：1 - 40
1.0mm Pin Header Dual
Row SMT Type W/ Post
Model：HY1002-10
Voltage rating：/
Current rating：1.0A
Positions：1 - 40
1.0mm Pin Header Dual
Row Stack SMT Type
Model：HY1002-11
Voltage rating：/
Current rating：1.0A
Positions：1 - 40
1.27mm Pin Header Single
Row V/T Type
Model：HY1003-01
Voltage rating：/
Current rating：1.0A
Positions：1 - 40
