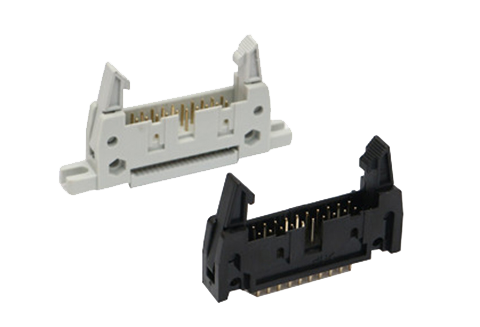

Shrouded header is available with different pitch from 1.27mm, 2.0mm and 2.54mm. The main mounting type includes straight type, right angle type and smt type. Customers can choose the proper type according to own requirement. This series applies to Industrial control, board to board, computer and so on. Products are designed in accordance with CE, ROHS, REACH standard
1.27mm Shrouded Header
V/T Type
Model：HY1018-01
Voltage rating：/
Current rating：1.0A
Positions：10 - 60
1.27mm Shrouded Header
R/A Type
Model：HY1018-02
Voltage rating：/
Current rating：1.0A
Positions：10 - 60
1.27mm Shrouded Header
SMT Type
Model：HY1018-03
Voltage rating：/
Current rating：1.0A
Positions：10 - 60
1.27*2.54mm Shrouded
Header V/T Type
Model：HY1018-04
Voltage rating：/
Current rating：1.0A
Positions：10 - 100
2.0mm Shrouded Header
V/T Type
Model：HY1019-01
Voltage rating：/
Current rating：1.5A
Positions：10 - 60
2.54mm Shrouded Header
V/T Type
Model：HY1020-01
Voltage rating：/
Current rating：3.0A
Positions：10 - 64
2.54mm Shrouded Header
R/A Type
Model：HY1020-02
Voltage rating：/
Current rating：3.0A
Positions：10 - 64
2.54mm Shrouded Header
SMT Type
Model：HY1020-03
Voltage rating：/
Current rating：3.0A
Positions：10 - 64
2.54mm Shrouded Header
V/T Type
Model：HY1020-04
Voltage rating：/
Current rating：3.0A
Positions：10 - 64
2.54mm Shrouded Header
R/A Type
Model：HY1020-05
Voltage rating：/
Current rating：3.0A
Positions：10 - 64
2.54mm Shrouded Header
IDC Type Without Ears
Model：HY1020-06
Voltage rating：/
Current rating：3.0A
Positions：10 - 64
2.54mm Shrouded Header
IDC Type With Ears
Model：HY1020-07
Voltage rating：/
Current rating：3.0A
Positions：10 - 64
2.54mm Shrouded Header
V/T Type
Model：HY1020-08
Voltage rating：/
Current rating：3.0A
Positions：10 - 64
2.54mm Shrouded Header
R/A Type
Model：HY1020-09
Voltage rating：/
Current rating：3.0A
Positions：10 - 64
2.54mm Shrouded Header
SMT Type
Model：HY1020-10
Voltage rating：/
Current rating：3.0A
Positions：10 - 64
