The products apply to all types of wire. To operate cage clamp from the vertical or horizontal direction which make preset wires and field wiring more easily，Applies to the plate to the line and line to line connection. Connector with fixed pin that apply to wall mounted. It also can be installed positioning pin block.

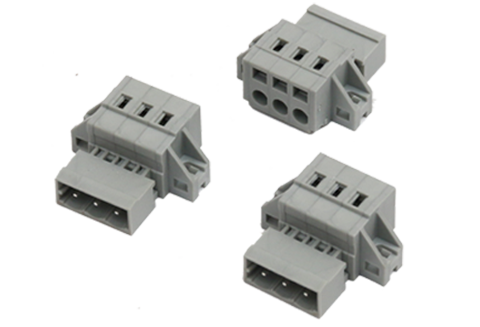

Female MCS Terminal Blocks-Pitch 5.0/5.08
Medel：HY4500/4580-01A
Voltage rating：300V
Current rating：15A
Wire range：2.5mm²
Female MCS Terminal Blocks-Pitch 5.0/5.08
Medel：HY4500/4580-02A
Voltage rating：300V
Current rating：15A
Wire range：2.5mm²
Female MCS Terminal Blocks-Pitch 5.0/5.08
Medel：HY4500/4580-03A
Voltage rating：300V
Current rating：15A
Wire range：2.5mm²
Female MCS Terminal Blocks-Pitch 5.0/5.08
Medel：HY4500/4580-04A
Voltage rating：300V
Current rating：15A
Wire range：2.5mm²
Female MCS Terminal Blocks-Pitch 5.0/5.08
Medel：HY4500/4580-05A
Voltage rating：300V
Current rating：15A
Wire range：2.5mm²
Female MCS Terminal Blocks-Pitch 5.0/5.08
Medel：HY4500/4580-06A
Voltage rating：300V
Current rating：15A
Wire range：2.5mm²
Female MCS Terminal Blocks-Pitch 7.5/7.62
Model：HY4750/4762-01A
Voltage rating：300V
Current rating：15A
Wire range：2.5mm²
Female MCS Terminal Blocks-Pitch 7.5/7.62
Medel：HY4750/4762-02A
Voltage rating：300V
Current rating：15A
Wire range：2.5mm²
Female MCS Terminal Blocks-Pitch 7.5/7.62
Medel：HY4750/4762-03A
Voltage rating：300V
Current rating：15A
Wire range：2.5mm²
Female MCS Terminal Blocks-Pitch 7.5/7.62
Medel：HY4750/4762-04A
Voltage rating：300V
Current rating：15A
Wire range：2.5mm²
Female MCS Terminal Blocks-Pitch 7.5/7.62
Medel：HY4750/4762-05A
Voltage rating：300V
Current rating：15A
Wire range：2.5mm²
Female MCS Terminal Blocks-Pitch 7.5/7.62
Medel：HY4750/4762-06A
Voltage rating：300V
Current rating：15A
Wire range：2.5mm²
