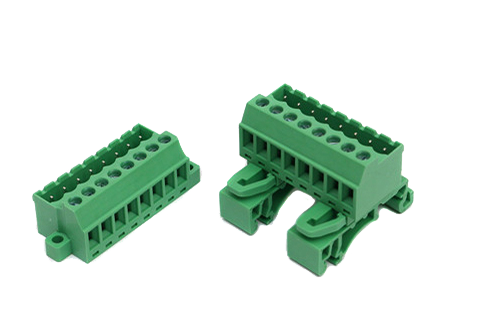

These products are designed for special connection purposes. The terminal blocks can be mounted on a panel or on a DIN rail while connected to a plug component. 5.00mm and 5.08mm pitches are available.
Special Type Terminal Blocks-Pitch 3.81mm
Model:15EDGGB-3.81
Voltage rating:300V
Current rating:8A
Wire range:1.5mm²
Special Type Terminal Blocks-Pitch 3.81mm
Model:15EDGGBM-3.81
Voltage rating:300V
Current rating:8A
Wire range:1.5mm²
Special Type Terminal Blocks-Pitch 5.08mm
Model:2EDGGB-5.08
Voltage rating:300V
Current rating:15A
Wire range:2.5mm²
Special Type Terminal Blocks-Pitch 5.08mm
Model:2EDGGBM-5.08
Voltage rating:300V
Current rating:15A
Wire range:2.5mm²
Special Type Terminal Blocks-Pitch 5.08mm
Model:2EDGVK-5.08
Voltage rating:300V
Current rating:15A
Wire range:2.5mm²
Special Type Terminal Blocks-Pitch 5.08mm
Model:2EDGVKM-5.08
Voltage rating:300V
Current rating:15A
Wire range:2.5mm²
Special Type Terminal Blocks-Pitch 5.08mm
Model:2EDGUVK-5.08
Voltage rating:300V
Current rating:15A
Wire range:2.5mm²
Special Type Terminal Blocks-Pitch 5.08mm
Model:2EDGUVKM-5.08
Voltage rating:300V
Current rating:15A
Wire range:2.5mm²
Special Type Terminal Blocks-Pitch 5.0/5.08mm
Model:2EDGRK-5.0/5.08
Voltage rating:300V
Current rating:15A
Wire range:2.5mm²
Special Type Terminal Blocks-Pitch 5.08mm
Model:2EDGURK-5.08
Voltage rating:300V
Current rating:15A
Wire range:2.5mm²
