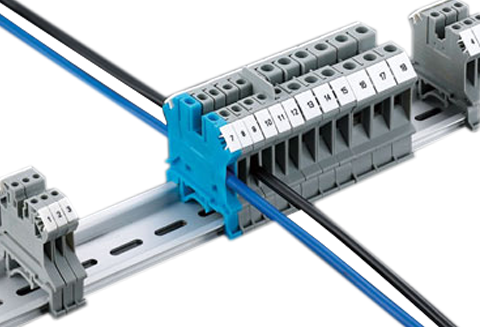

Rail-mounted screw terminal blocks use screw pressure wire frame technology, is able to complete the terminal connection of a variety of customers’ needs and provide a rich combination of terminal accessories. Able to ensure the greatest degree of customer operations comfort, save space and easy for operate. It widely used in the control of the respective low-voltage electrical equipment.
UK Din Rail Terminal Blocks
Model：UK1.5N
Voltage rating：600V
Current rating：10A
Wire range：0.2-1.5mm²
UK Din Rail Terminal Blocks
Model：UK2.5B
Voltage rating：600V
Current rating：20A
Wire range：0.2-2.5mm²
UK Din Rail Terminal Blocks
Model：UK3N
Voltage rating：600V
Current rating：20A
Wire range：0.2-2.5mm²
UK Din Rail Terminal Blocks
Model：UK5N
Voltage rating：600V
Current rating：30A
Wire range：0.2-4.0mm²
UK Din Rail Terminal Blocks
Model：UK6N
Voltage rating：600V
Current rating：50A
Wire range：0.2-6.0mm²
UK Din Rail Terminal Blocks
Model：UK10N
Voltage rating：600V
Current rating：65A
Wire range：0.2-10mm²
UK Din Rail Terminal Blocks
Model：UK16N
Voltage rating：600V
Current rating：85A
Wire range：0.2-16mm²
UK Series Din Rail Terminal Blocks
Model：UK35N
Voltage rating：600V
Current rating：150A
Wire range：0.2-35mm²
UK Din Rail Terminal Blocks
Model：UIK35
Voltage rating：600V
Current rating：115A
Wire range：0.75-35mm²
UK Din Rail Terminal Blocks
Model：UKH50
Voltage rating：600V
Current rating：125A
Wire range：25-50mm²
UK Din Rail Terminal Blocks
Model：UKH95
Voltage rating：726V
Current rating：216A
Wire range：35-95mm²
UK Din Rail Terminal Blocks
Model：UKH150
Voltage rating：1100V
Current rating：265A
Wire range：50-150mm²
UK Din Rail Terminal Blocks
Model：UKH240
Voltage rating：1100V
Current rating：350A
Wire range：70-240mm²
UK Din Rail Terminal Blocks
Model：UK2.5-TW
Voltage rating：300V
Current rating：20A
Wire range：0.2-2.5mm²
UK Din Rail Terminal Blocks
Model：UK4-TW
Voltage rating：300V
Current rating：30A
Wire range：0.2-4.0mm²
