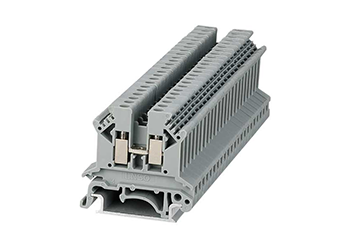

UK2.5B

Pitch : /, M3 , 600V , 20A

Material
Screw	M3.0，Steel，Ni Plated
Terminal	Brass，Ni Plated
Plastic	PA66，UL94V-0

Electrical
Standard	UL	IEC
Rated voltage	600V	800V
Rated current	20A	24A
Wire range	24-12AWG	0.2-2.5mm2
Internal Cylindrical Gage	A3
Stripping Length	7mm
Rated Surge Voltage	8KV

Mechanical
Temperature range	-40°C~+105°C
Tightening Torque	0.5N.m

Size
T/W/End plate	6.2/42.5/1.5mm
Height (NS35:7.5/NS35:15/N32)	42/49.5/47mm
