Japanese Terminal Blocks
Home > Terminal Blocks > Japanese Terminal Blocks

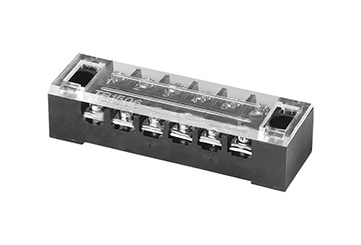

TB15-9.0

Pitch：9.0mm , M3, 600V, 20A

PDF Download




Material
ScrewM3.0，Steel，Ni Plated
TerminalBrass，Tin Plated
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage600V450V
Rated current 20A 32A
Wire range22-12AWG4.0mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2000V/1Min
Mechanical
Temperature range-40°C~+105°C
Max.Torque8KG.CM
Size
Pitch9.0mm
poles 2P-24P
