Japanese Terminal Blocks
Home > Terminal Blocks > Japanese Terminal Blocks

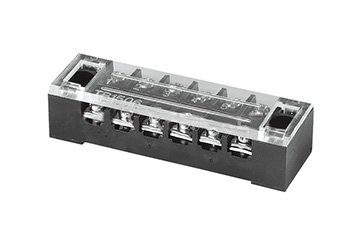

TB25-12.0

Pitch：12.0mm , M4, 600V, 20A

PDF Download




Material
ScrewM4.0，Steel，Ni Plated
TerminalBrass，Tin Plated
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage600V750V
Rated current 20A 32A
Wire range22-12AWG4.0mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2000V/1Min
Mechanical
Temperature range-40°C~+105°C
Max.Torque9KG.CM
Size
Pitch12.0mm
poles 2P-12P
