Rising Clamp Terminal Blocks
Home > Terminal Blocks > Rising Clamp Terminal Blocks

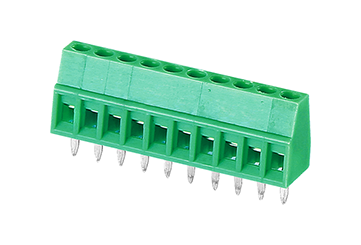

JM308-2.54

Pitch : 2.54mm , 150V , 6A

PDF Download




Material
ScrewM1.6，steel Zinc plated
ClampBrass，Ni plated
Pin headerBrass,Tin plated
PlasticPA66，UL94V-0

Electrical
StandardUL IEC
Rated voltage150V130V
Rated current 6A 8A
Wire range26-18AWG1.0mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2000V/1Min

Mechanical
Temperature range-40°C~+105°C
Max.Torque0.1Nm (0.89Lb.in)
Strip length4-5mm

Size
Pitch2.54mm(.100")
poles 2P-24P
