PCB Terminal Blocks-Plug
Home > Terminal Blocks > PCB Terminal Blocks-Plug

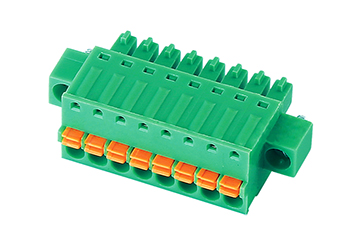

15EDGKDM-3.5/3.81

Pitch : 3.5/3.81 mm , M2.0,  300V , 8A

PDF Download



Material and plating
Screw
M2.0，Steel，Zinc plated
Wire guard
Brass，Ni plated
ClampPhosphor bronze,Ni plated
Plastic
PA66，UL94V-0

Electrical Performance
Reference StandardUL IEC
Rated voltage300V250V
Rated current8A 10A
Wire range 28-16AWG 1.5mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand Voltage AC2000V/1Min

Mechanical
Temperature range -40°C~+105°C
Max.Torque0.2Nm (1.7Lb.in)
Strip length6-7mm

Sizereplica borse
Pitch3.5mm(.138"),3.81mm(.150")
Poles 2P-24P
