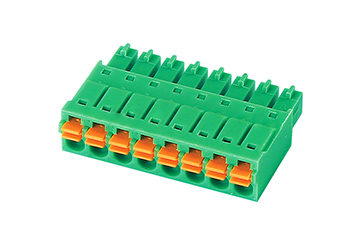

15EDGKN-3.5

Pitch : 3.5 ,  300V , 8A

PDF Download





Material and plating
Shrapnel
Stainless steel(SUS301)
ClampPhosphor bronze,Ni plated
Housing
PA66，UL94V-0

Electrical Performance
Reference StandardUL IEC
Rated voltage300V250V
Rated current8A 10A
Wire range 24-16AWG 1.0mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand Voltage AC2000V/1Min

Mechanical
Temperature range -40°C~+105°C
Strip length9-10mm

Size
Pitch3.5mm(.138")
Poles 2P-24P
