PCB Terminal Blocks-Plug

Home > Terminal Blocks > PCB Terminal Blocks-Plug

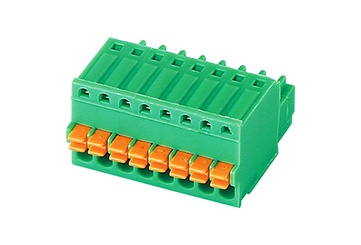

15EDGKD-2.5

Pitch : 2.50 mm , 150V , 4A

Material and plating
Screw	M2.0，Steel，Galvanization
Box	Brass，Nickel
Clip	Phosphor bronze，Nickel
Plastic	PA66，UL94V-0

Electrical Performance
Reference Standard	UL	IEC
Rated voltage	150V	250V
Rated current	4A	5A
Use wire	26-20AWG	0.5mm2
Contact resistance	20mΩ
Insulation resistance	500MΩ/DC500V
Dielectric	AC1250V/1Min

Mechanical properties
Temperature range	-40°C~+105°C
Strip length	7-8mm

Size
Spacing	2.5mm(.098")
Number of poles	2P-24P
