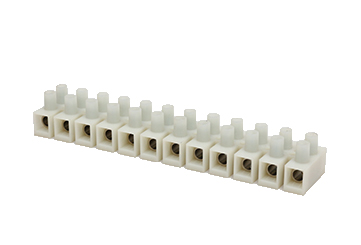

Lighting Terminal Blocks

Pitch : 14.5mm , M4.0 , 600V , 57A

Material
Screw	M4.0，Zinc plated
Clamp	Cladded copper strips Zinc plated
Plastic	PA66，UL94V-0

Electrical
Standard	UL	IEC
Rated voltage	600V	750V
Rated current	57A	60A
Wire range	14-6AWG	16.0mm2
Internal Cylindrical Gage	/
Stripping Length	6-7mm
Rated Surge Voltage	2.5KV

Mechanical
Temperature range	-40°C~+105°C
Tightening Torque	0.5Nm(4.0Lb-in)

Size
Pitch	14.5mm
Poles	2P-12P
