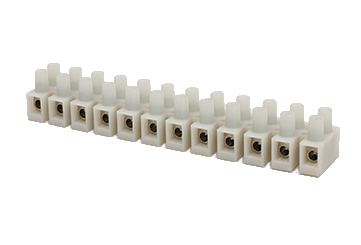

Lighting Terminal Blocks

Pitch : 13.5mm , M4.0 , 600V , 50A

Material
Screw	M4.0，Zinc plated
Clamp	Cladded copper strips Zinc plated
Plastic	PA66，UL94V-0

Electrical
Standard	UL	IEC
Rated voltage	600V	750V
Rated current	50A	57A
Wire range	12-8AWG	10.0mm2
Internal Cylindrical Gage	/
Stripping Length	6-7mm
Rated Surge Voltage	2.5KV

Mechanical
Temperature range	-40°C~+105°C
Tightening Torque	0.5Nm(4.0Lb-in)

Size
Pitch	13.5mm(.531")
Poles	2P-12P
