0.8mm Pin Header Series
Home > Electronic Connector > 0.8mm Pin Header Series

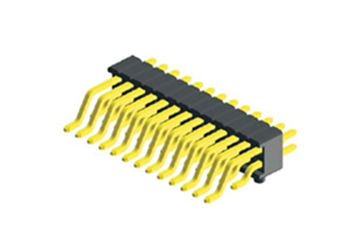

HY1001-03

Pitch : 0.8mm , SMT ,  1.0A



PDF Download




Material
TerminalsCopper alloy

plating

According to order request

PlasticPBT，UL94V-0

Electrical
Standard//
Rated voltage//
Rated current 0.5A/
Wire range//
Contact resistance20mΩ Max.(intial).
Insulation resistance 500MΩ Min
Withstand Voltage600V AC

Mechanical
Temperature range-40°C~+105°C
Max.Torque/
Strip length/

Sizeomega replica uhren
Pitch0.8mm
poles 2*2 - 2*40
