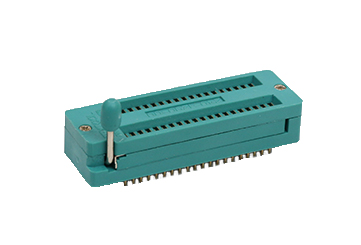

HY1158-03

Pitch：2.54mm , V/T

PDF Download





Material
ContactsCopper Alloy
Plated

According to order request

InsultatorTemperature(UL 94V-0)
Electrical
Standard//
Rated voltage//
Rated current //
Wire range//
Contact resistance50mΩ max.(initial).
Insulation resistance 1000MΩ min.
Withstand VoltageAC 500V Per Minute
Mechanical
Operating temperature-40 ~ +105℃
Storage Temperature/
Strip length/
Size
Pitch2.54mm
poles 14-48
