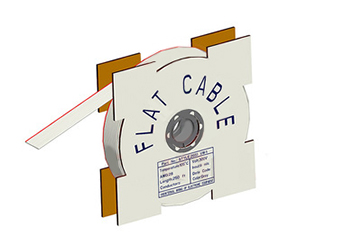

HY1149

Pitch：0.635mm , IDC/Soldering/Crimp



PDF Download





Material
Contacts/
Conductor wire

copper

InsultatorPVC,color is gray
Electrical
Standard//
Rated voltage250V/
Rated current //
Wire range//
Contact resistanceΦ0.127<237Ω/km,Φ0.100<397Ω/km.
Insulation resistance 1000MΩ min.
Withstand Voltage500V AC 1 minute.
Mechanical
Operating temperature/
 Temperature-20 ~ +70℃
Strip length/
Size
Pitch0.635mm
poles 60/80/100
