HY1100

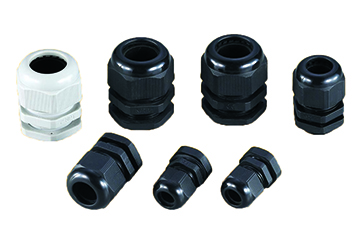

NPT Type Nylon Cable Glands

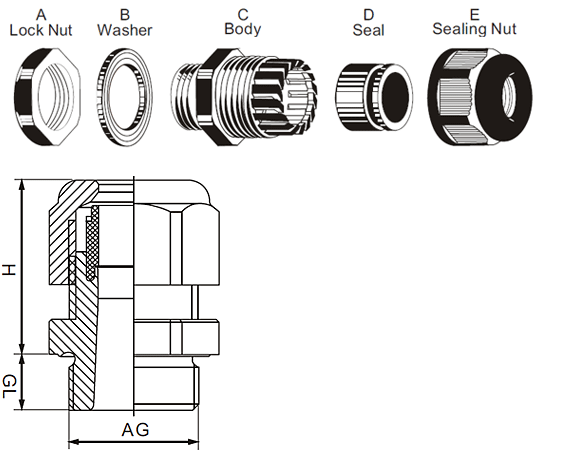

Model	mm	H mm	GL mm	mm
3/8" NPT	4-8	22	15	22/19
3/8" NPT	2-6	22	15	22/19
1/2" NPT	6-12	27	13	24
1/2" NPT	5-9	27	13	24
1/2" NPT	10-14	28	13	27
1/2" NPT	7-12	28	13	27
3/4" NPT	13-18	31	14	33
3/4" NPT	9-16	31	14	33
1" NPT	18-25	39	19	42
1" NPT	13-20	39	19	42
1 1/4" NPT	18-25	39	16	46/42
1 1/4" NPT	13-20	39	16	46/42
1 1/2" NPT	22-32	48	20	53
1 1/2" NPT	20-26	48	20	53
