HY1099

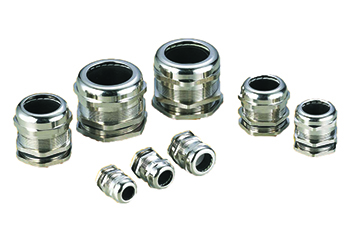

M-Length Metal Cable Glands

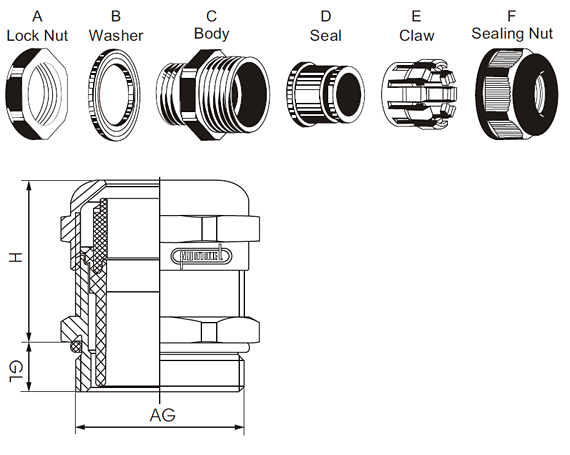

Model	mm	H mm	GL mm	mm
M 12 x 1,5	3-6,5	19	6,5	14
M 12 x 1,5	2-5	19	6,5	14
M 16 x 1,5	4-8	22	6	17/19
M 16 x 1,5	2-6	22	6	17/19
M 16 x 1,5	5-10	23	6	20
M 20 x 1,5	6-12	23	6	22
M 20 x 1,5	5-9	24	6	22
M 20 x 1,5	10-14	26	6	24
M 25 x 1,5	13-18	26	7	30
M 25 x 1,5	9-16	31	7	30
M 32 x 1,5	18-25	31	8	40
M 32 x 1,5	13-20	31	8	40
M 40 x 1,5	22-32	37	8	50
M 40 x 1,5	20-26	37	8	50
M 50 x 1,5	32-38	37	9	57
M 50 x 1,5	25-31	37	9	57
M 63 x 1,5	37-44	38	10	64/68
M 63 x 1,5	29-35	38	10	64/68
