HY1095

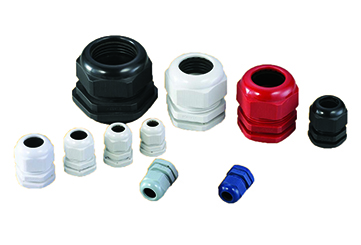

M Type Nylon Cable Glands

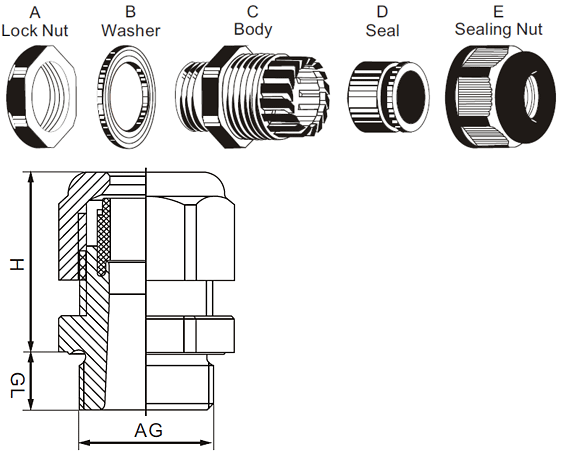

Model	mm	H mm	GL mm	mm
M 12 x 1,5	3-6,5	21	8	15
M 12 x 1,5	2-5	21	8	15
M 12 x 1,5	4-8	22	8	19
M 12 x 1,5	2-6	22	8	19
M 12 x 1,5	5-10	25	8	22
M 20 x 1,5	6-12	27	9	24
M 20 x 1,5	5-9	27	9	24
M 20 x 1,5	10-14	28	9	27
M 25 x 1,5	13-18	31	11	33
M 25 x 1,5	9-16	31	11	33
M 32 x 1,5	18-25	39	11	42
M 32 x 1,5	13-20	39	11	42
M 40 x 1,5	22-32	48	13	53
M 40 x 1,5	20-26	48	13	53
M 50 x 1,5	32-38	49	13	60
M 50 x 1,5	25-31	49	13	60
M 63 x 1,5	37-44	49	14	65/68
M 63 x 1,5	29-35	49	14	65/68
