HY1094

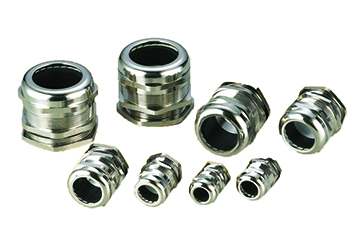

PG/PG-Length Metal Cable Glands

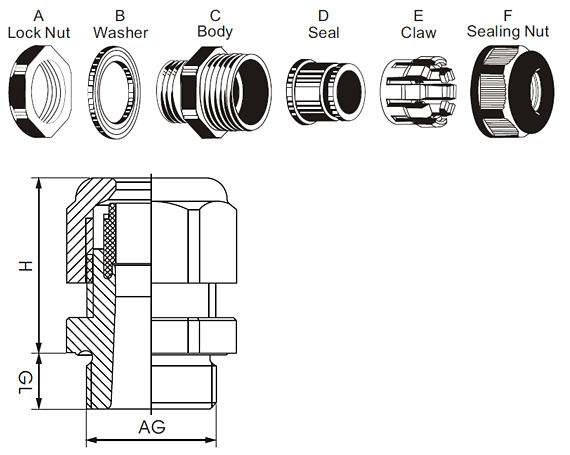

Model	mm	H mm	GL mm	mm
PG 7	3-6,5	19	10	14
PG 7	2-5	19	10	14
PG 9	4-8	21	10	17
PG 9	2-6	21	10	17
PG 11	5-10	22	10	20
PG 11	3-7	22	10	20
PG 13,5	6-12	24	10	22
PG 13,5	5-9	24	10	22
PG 16	10-14	23	10	24
PG 16	7-12	23	10	24
PG 21	13-18	24	12	30
PG 21	9-16	24	12	30
PG 29	18-25	29	12	40
PG 29	13-20	29	12	40
PG 36	22-32	35	12	50
PG 36	20-26	35	15	50
PG 42	32-38	37	15	57
PG 42	25-31	37	15	57
PG 48	37-44	38	15	64
PG 48	29-35	38	15	64
