D-SUB Vertical Through Series
Home > Electronic Connector > D-SUB Vertical Through Series

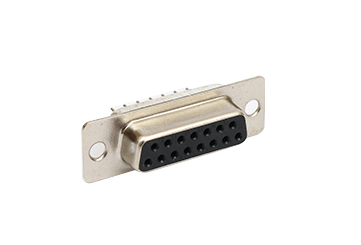

HY1053-01

Pitch : 2.77mm , V/T

PDF Download





Material
InsulatorThermoplastic(UL 94V-0 OR HB).
ContactCopper alloy
ShellShell
Contact  PlatedAccording to order request
Electrical
Standard//
Rated voltage//
Rated current//
Wire range //
Contact resistance20mΩ
Insulation resistance 1000MΩ/DC500V
Withstand Voltage AC500V/1Min
Mechanical
Temperature range -40°C~+105°C
Max.Torque/
Strip length/
Size
Pitch2.77mm
Poles 9/15/25/37/50
