2.54mm Pitch Series

Home > Electronic Connector > 2.54mm Pitch Series

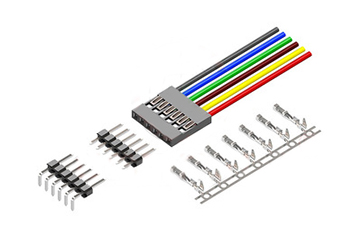

HY1038-02

Pitch : 2.54mm , Crimp , 250V, 3.0A

Material
Terminals	Copper alloy
plating	According to order request
Plastic	PA66, (UL94V-0)

Electrical
Standard	/	/
Rated voltage	250V	/
Rated current	3.0A	/
Wire range	28-22	/
Contact resistance	30mΩ Max.(intial).
Insulation resistance	1000MΩ Min
Withstand Voltage	AC 500V/Min

Mechanical
Temperature range	-25°C~+85°C
Max.Torque	/
Strip length	/

Size
Pitch	2.54mm
poles	1 - 15
