PCB Spring Terminal Blocks
Home > Terminal Blocks > PCB Spring Terminal Blocks

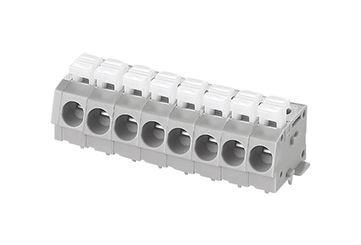

JM202-5.0

Pitch : 5.0mm , 300V , 12A



PDF Download




Material
Pin headerBrass，Tin plated
Wire guardStainless steel(SUS301)
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage300V250V
Rated current 12A 16A
Wire range20-12AWG2.5mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2000V/1Min
Mechanical
Temperature range-40°C~+105°C
Max.Torque+250°C 5秒
Strip length10-11mm
Size
Pitch5.0mm(.197")
poles 1P-XXP
