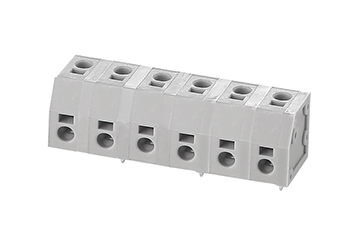

JM250-7.5

Pitch : 7.5mm , 300V , 10A



PDF Download




Material
Pin headerBrass，Tin plated
Wire guardStainless steel(SUS301)
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage300V400V
Rated current 10A 9A
Wire range20-14AWG0.75mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2000V/1Min
Mechanical
Temperature range-40°C~+105°C
Max.Torque+250°C 5秒
Strip length7-8mm
Size
Pitch7.5mm(.295")
poles 1P-XXP
