PCB Spring Terminal Blocks
Home > Terminal Blocks > PCB Spring Terminal Blocks

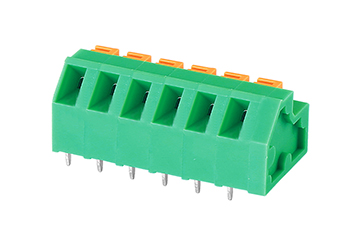

JM237-5.08

Pitch : 5.08mm , 300V , 10A



PDF Download




Material
Pin headerBrass，Tin plated
Wire guardStainless steel(SUS301)
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage300V300V
Rated current 10A 10A
Wire range22-16AWG1.5mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2000V/1Min
Mechanical
Temperature range-40°C~+105°C
Max.Torque+250°C 5秒
Strip length10mm
Size
Pitch5.08mm(.200")
poles 1P-XXP
