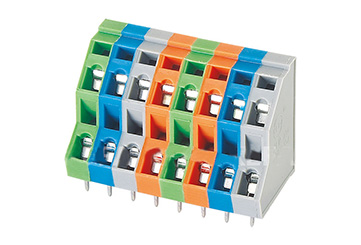

JM245T2-5.0/5.08

Pitch : 5.0/5.08mm , 300V , 15A

Material
Pin header	Brass,Tin plated
Wire guard	Stainless steel(SUS301)
Plastic	PA66，UL94V-0

Electrical
Standard	UL	IEC
Rated voltage	300V	450V
Rated current	10A	15A
Wire range	28-14AWG	1.5mm2
Contact resistance	20mΩ
Insulation resistance	500MΩ/DC500V
Withstand Voltage	AC2000V/1Min

Mechanical
Temperature range	-40°C~+105°C
Max.Torque	+250°C 5秒
Strip length	5-6mm

Size
Pitch	5.0mm,5.08mm
poles	1P-XXP
