SAK Din Rail Terminal Blocks
Home > Terminal Blocks > SAK Din Rail Terminal Blocks

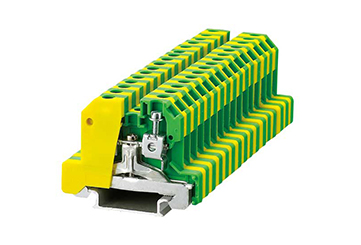

EK6/35

Pitch : /, M3

PDF Download




Material
Tightening Torque:Screw Thread/Tightening TorqueM3.5/0.8Nm
Tightening Torque(Fixing Screw):Screw Thread/Tightening TorqueM3.0/0.5Nm
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage//
Rated current //
Wire range24-10AWG0.75-4.0mm2
Internal Cylindrical Gage/
Stripping Length12mm
Rated Surge Voltage/
Mechanical
Temperature range-40°C~+105°C
Tightening Torque

/

Size
T/W/End plate8/56/-mm

Height (NS35:7.5/NS35:15/N32)

44/51.5mm
