UK Din Rail Terminal Blocks
Home > Terminal Blocks > UK Din Rail Terminal Blocks

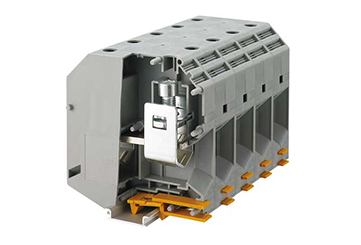

UKH240

Pitch : /, M10 , 1100V , 350A



PDF Download




Material
ScrewM10，Steel，Ni Plated
TerminalBrass，Ni Plated
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage1100V1000V
Rated current 350A 415A
Wire range0-500MCM70-240mm2
Internal Cylindrical GageB15
Stripping Length40mm
Rated Surge Voltage8KV
Mechanical
Temperature range-40°C~+105°C
Tightening Torque

25-30N.m

Size
T/W/End plate36/100/-mm

Height (NS35:7.5/NS35:15/N32)

-/131.5/129.5mm
