UK Din Rail Terminal Blocks
Home > Terminal Blocks > UK Din Rail Terminal Blocks

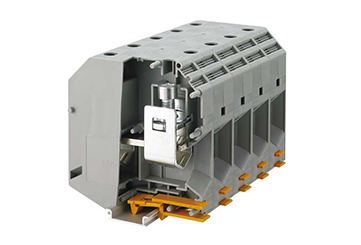

UKH150

Pitch : /, M10 , 1100V , 265A



PDF Download




Material
ScrewM10，Steel，Ni Plated
TerminalBrass，Ni Plated
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage1100V1000V
Rated current 265A 232A
Wire range2-300MCM50-150mm2
Internal Cylindrical GageB14
Stripping Length40mm
Rated Surge Voltage8KV
Mechanical
Temperature range-40°C~+105°C
Tightening Torque

25-30N.m

Size
T/W/End plate31/100/-mm

Height (NS35:7.5/NS35:15/N32)

-/118.5/116mm
