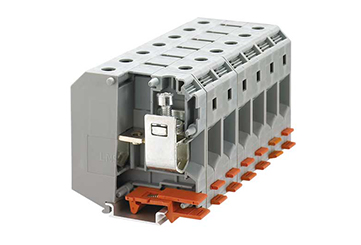

UKH50

Pitch : /, M6 , 600V , 125A

PDF Download




Material
ScrewM6.0，Steel，Ni Plated
TerminalBrass，Ni Plated
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage600V1000V
Rated current 125A 150A
Wire range6-1/0AWG25-50mm2
Internal Cylindrical GageB10
Stripping Length24mm
Rated Surge Voltage8KV
Mechanical
Temperature range-40°C~+105°C
Tightening Torque

2.5N.m

Size
T/W/End plate20/70.5/-mm

Height (NS35:7.5/NS35:15/N32)

-/83.5/81.5mm
