UK Din Rail Terminal Blocks
Home > Terminal Blocks > UK Din Rail Terminal Blocks

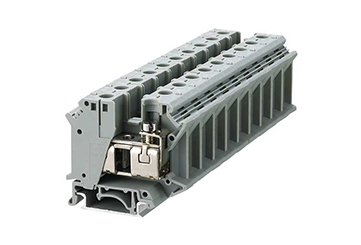

UIK35

Pitch : /, M6 , 600V , 115A

PDF Download




Material
ScrewM6.0，Steel，Ni Plated
TerminalBrass，Ni Plated
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage600V600V
Rated current 115A 125A
Wire range18-2AWG0.75-35mm2
Internal Cylindrical GageB9
Stripping Length16mm
Rated Surge Voltage8KV
Mechanical
Temperature range-40°C~+105°C
Tightening Torque

2.5N.m

Size
T/W/End plate15.2/55/-mm

Height (NS35:7.5/NS35:15/N32)

51/58.5/59mm
