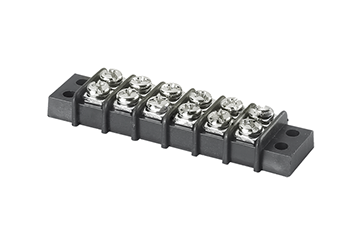

EX49M-9.5

Pitch：9.5mm , M3.5, 300V, 20A

Material
Screw	M3.5，Steel，Ni Plated，
Terminal	Brass，0.8T， Tin Plated
Plastic	PA66，UL94V-0

Electrical
Standard	UL	IEC
Rated voltage	300V	750V
Rated current	20A	32A
Wire range	22-12AWG	4.0mm2
Contact resistance	20mΩ
Insulation resistance	500MΩ/DC500V
Withstand Voltage	AC2000V/1Min

Mechanical
Temperature range	-40°C~+105°C
Max.Torque	0.8Nm (7.0Lb.in)

Size
Pitch	9.5mm(.375")
poles	2P-26P
