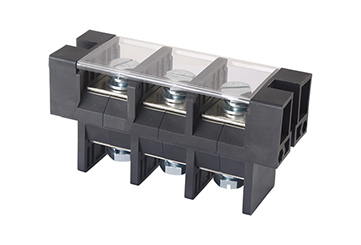

EX578S-21.0

Pitch：21.0mm , M6, 600V, 115A

Material
Screw	M6.0，Steel，Ni Plated
Terminal	Brass，Tin Plated
Plastic	PA66，UL94V-0

Electrical
Standard	UL	IEC
Rated voltage	600V	1000V
Rated current	115A	125A
Wire range	8-2AWG	35mm2
Contact resistance	20mΩ
Insulation resistance	500MΩ/DC500V
Withstand Voltage	AC3000V/1Min

Mechanical
Temperature range	-40°C~+105°C
Max.Torque	30KG.CM

Size
Pitch	21.0mm
poles	1P-15P
