High Current Terminals
Home > Terminal Blocks > High Current Terminals

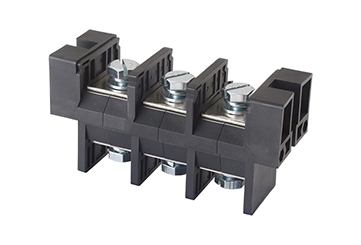

EX578-21.0

Pitch：21.0mm , M6, 600V, 115A

PDF Download




Material
ScrewM6.0，Steel，Ni Plated
TerminalBrass，Tin Plated
PlasticPA66，UL94V-0
Electrical
StandardUL IEC
Rated voltage600V1000V
Rated current 115A 125A
Wire range8-2AWG35mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC3000V/1Min
Mechanical
Temperature range-40°C~+105°C
Max.Torque30KG.CM
Size
Pitch21.0mm
poles 1P-15P
