Rising Clamp Terminal Blocks
Home > Terminal Blocks > Rising Clamp Terminal Blocks

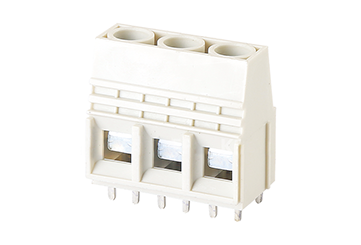

JM1016-10.16

Pitch : 10.16mm , 600V , 60A

PDF Download




Material
ScrewM4.0，steel Zinc plated
ClampBrass，Ni plaed
Pin headerBrass，Tin plated
PlasticPA66，UL94V-0

Electrical
StandardUL IEC
Rated voltage600V1000V
Rated current 60A 57A
Wire range22-6AWG10.0mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC3000V/1Min

Mechanical
Temperature range-40°C~+105°C
Max.Torque1.2Nm (10.5Lb.in)
Strip length10-11mm

Size
Pitch10.16mm(.400")
poles 2P-24P
