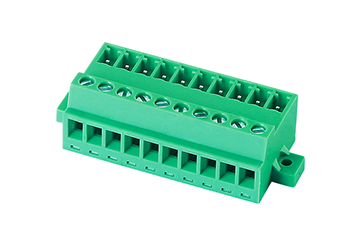

15EDGGB-3.81

Pitch : 3.81mm , 300V , 8A

Material
Screw	M2.0，Steel，Zinc plated
Clamp	Brass，Ni plated
Pin header	Brass,Tin plated
Plastic	PA66，UL94V-0

Electrical
Standard	UL	IEC
Rated voltage	300V	250V
Rated current	8A	7A
Wire range	28-16AWG	1.5mm2
Contact resistance	20mΩ
Insulation resistance	500MΩ/DC500V
Withstand Voltage	AC2000V/1Min

Mechanical
Temperature range	-40°C~+105°C
Max.Torque	0.5Nm (4.5Lb.in)
Strip length	7-8mm

Size
Pitch	3.81mm(.200")
poles	2P-24P
