PCB Spring Terminal Blocks

Home > Terminal Blocks > PCB Spring Terminal Blocks

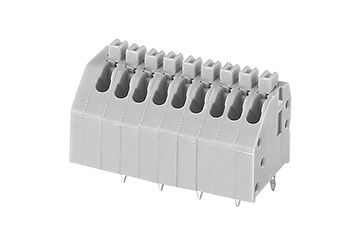

JM250-2.5

Pitch : 2.5mm , 300V , 4A

Material
Pin header	Brass，Tin plated
Plastic	PA66，UL94V-0

Electrical
Standard	UL	IEC
Rated voltage	300V	250V
Rated current	4A	15A
Wire range	28-20AWG	0.5mm2
Contact resistance	20mΩ
Insulation resistance	500MΩ/DC500V
Withstand Voltage	AC2000V/1Min

Mechanical
Temperature range	-40°C~+105°C
Max.Torque	+250°C 5秒
Strip length	9-10mm

Size	orologi replica di lusso
Pitch	2.5mm(.098")
poles	1P-XXP
