PCB Spring Terminal Blocks
Home > Terminal Blocks > PCB Spring Terminal Blocks

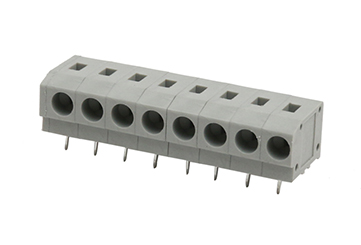

JM235RA-5.0

Pitch : 5.0mm , 300V , 5A

PDF Download




Material
Pin headerBrass，Tin plated
Wire guardStainless steel(SUS301)
PlasticPA66，UL94V-0

Electrical
StandardUL IEC
Rated voltage300V250V
Rated current 5A 15A
Wire range22-18AWG1.0mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2000V/1Min

Mechanical
Temperature range-40°C~+105°C
Max.Torque+250°C 5秒
Strip length9-10mm

Size
Pitch5.0mm(.197")
poles 1P-XXP
