Wire Guard Terminal Blocks
Home > Terminal Blocks > Wire Guard Terminal Blocks

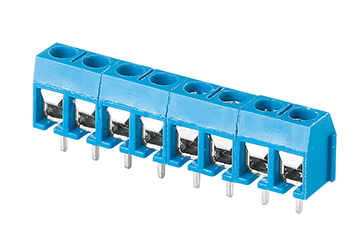

JM306-5.0

Pitch : 5.0 mm , 250V , 16A

PDF Download




Material
ScrewM2.5，steel Zinc plated
Wire guardPhosphor bronze，Ni plated
Pin headerBrass，Tin plated
PlasticPBT，UL94V-0

Electrical
StandardUL IEC
Rated voltage250V250V
Rated current 16A 24A
Wire range22-14AWG 1.5mm2
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand VoltageAC2000V/1Min

Mechanical
Temperature range-30°C~+120°C
Max.Torque0.4Nm (3.5Lb.in)
Strip length4.5-5mm

Sizefake shoes
Pitch5.0mm(.197")
poles 2P-24P
