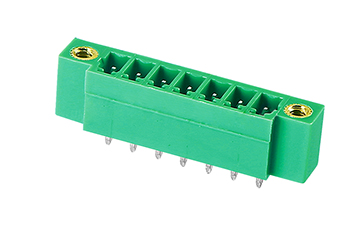

15EDGVM-3.5/3.81

Pitch : 3.5/3.81mm ,  300V , 8A

PDF Download




Material and plating
Pin headerBrass,Tin plated
Plastic
PA66，UL94V-0

Electrical Performance
Reference StandardUL IEC
Rated voltage300V250V
Rated current8A 10A
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand Voltage AC2000V/1Min

Mechanical
Temperature range -40°C~+105°C
Instantaneous temperature+250°C 5秒

Sizeorologi replica
Pitch3.5mm(.138"),3.81mm(.150")
Poles 2P-24P
