PCB Terminal Blocks-Socket
Home > Terminal Blocks > PCB Terminal Blocks-Socket

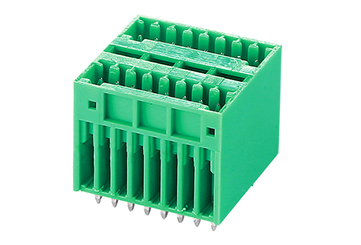

15EDGVH-2.5

Pitch : 2.5mm ,  150V , 4A

PDF Download




Material and plating
Pin headerBrass,Tin plated
Plastic
PA66，UL94V-0

Electrical Performance
Reference StandardUL IEC
Rated voltage150V130V
Rated current4A 5A
Contact resistance20mΩ
Insulation resistance 500MΩ/DC500V
Withstand Voltage AC1250V/1Min

Mechanical
Temperature range -40°C~+105°C
Instantaneous temperature+250°C 5秒

Size
Pitch2.5mm(.098")
Poles 2P-24P
