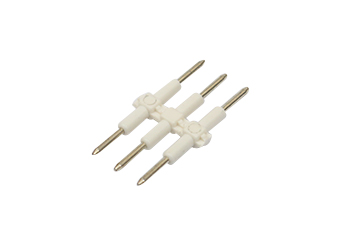

2060Z-3P

Pitch : 4.0mm, 150V , 7A

Material and plating
Contact material	Phosphor bronze
Spring clamp	/
Contact point coating	Tin Plated
Plastic	PA66，UL94V-0

Electrical Performance
Reference Standard	UL	IEC
Rated voltage	150V	250V
Rated current	7A	9A
Use wire	24-18AWG	0.75mm²
Contact resistance	/
Insulation resistance	/
Dielectric	AC2500V/1Min

Mechanical properties
Temperature range	-40°C~+105°C
Strip length	/

Size
Pitch	4.0mm
Number of poles	3P
